Efficient, Ergonomic and Versatile
Office Storage Carousels

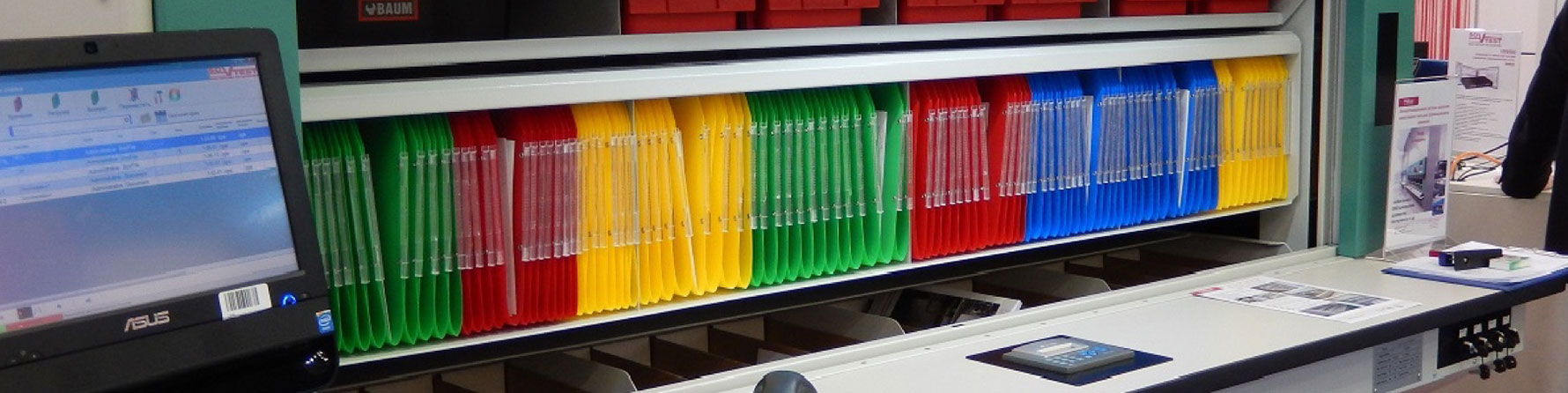

At the touch of a button or better still, at the flash of a bar-code, the selected shelf is positioned in front of the operator and a light indicates the location of your desired record, making file retrieval more efficient (with access to records in a matter of seconds).
Filing Carousels can fully utilise the room height ensuring a maximum capacity and minimal footprint when storing your documents. Space savings of up to 80% can be achieved when compared to conventional storage systems.
A 201% Increase In Storage Capacity Within The Same Floor Space….
Office Carousel Options
Giroclass Carousel
The Giroclass Carousel is an automated, vertical storage system manufactured by Electroclass, designed specifically for securing and retrieving archives, documents, and small to medium-sized items.
It uses the “paternoster” (rotating vertical) principle to bring stored items directly to the operator, saving up to 80-90% of floor space compared to conventional shelving
Rotoffice Carousel
The ROTOFFICE ® rotating filling system allows space recovery using height, a reduction in documentation time and an ergonomic workstation.
The automatic carousel archive is very versatile, having the possibility of using rotary shelves/carriers arranged for the insertion of hanging or standing folders, of BOX type folders and files or drawers for cards of different sizes.
The possibility of inserting mixed carriers in the same machine is also envisaged.
Carousel Specifications
| Model |
Giroclass P150c |
Giroclass P160 |
Rotoffice RTS |
Rotoffice RTD |
|---|---|---|---|---|
| Carrier Width | 1580 – 2960mm | 1820 – 2880mm | 1500 – 2782mm | 2332 – 2782mm |
| Carrier Depth | 340 | 340/400 | 365mm | 415mm |
| Carrier Height | 205 – 357mm | 199 – 357mm | 210 – 360mm | 210 – 360mm |
| Machine Depth | 980mm | 1159mm | <1168mm | <1168mm |
| Machine Width = Carrier + MM | + 340mm | + 400mm | + 396mm | + 396mm |
| Machine Height | 2200 – 5980mm | 2215 – 6025mm | 2050 – 3770mm | 2050 – 3770mm |
| Carrier Load | 110kg | 180kg | 130kg | 130kg |
| Total Load | 5279kg | 5999kg | 3250kg | 3250kg |
